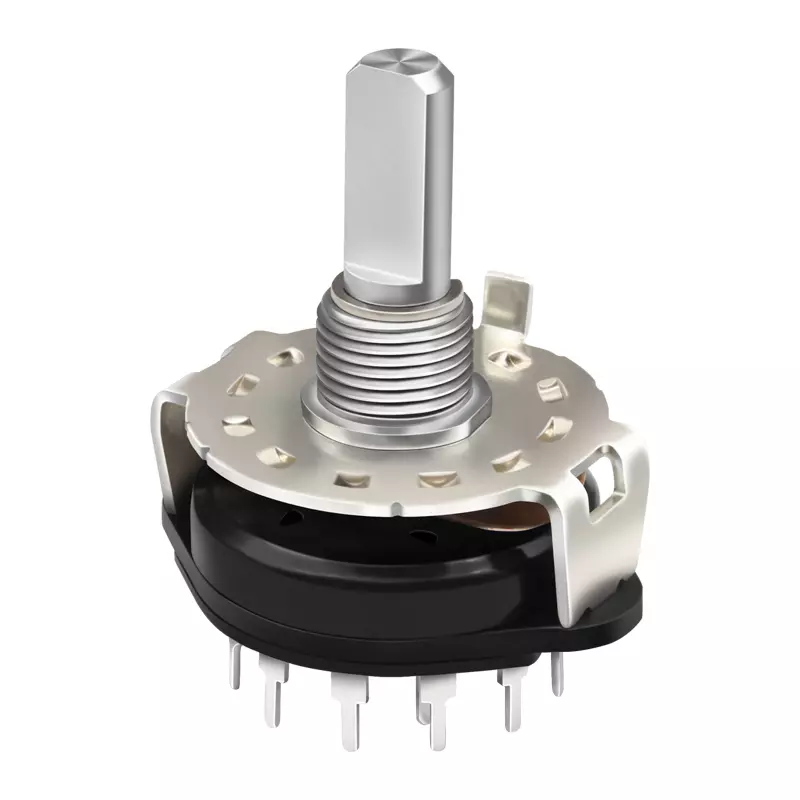

Detailed description of rotary switch products
1. Product Overview
This rotary switch is a high-performance, multi-speed control electrical component with ergonomic design. It is suitable for direction switching, mode adjustment or power control of various equipment. It features strong durability, excellent operation feel, safety and reliability, and is widely used in industrial equipment, household appliances, instruments and meters and other fields.
2. Core parameters
Model: RS-360 series (Adjustable according to the actual model)
Number of gears: 2/3/4/6 gears available for selection (customization supported)
Rated voltage/current: AC 250V 5A/DC 12V 10A (Depending on different specifications)
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ (500VDC)
Mechanical life: ≥10,000 rotations
Electrical life: ≥5,000 times
Rotation Angle: 30°/45°/90°/360° (Multiple Settings available)
Protection grade: IP65 (Dustproof and waterproof, suitable for harsh environments)
Material:
Shell: Flame-retardant PC/ metal (optional)
Contact: Silver alloy (low impedance, arc resistant)
Knob: Anti-slip texture design
3. Product Features
Precise positioning: The ratchet structure design ensures clear gears, preventing misoperation.
Safe and reliable: Certified by UL, CE and RoHS, it complies with international electrical standards.
Strong weather resistance: It can operate within a wide temperature range of -30℃ to +85℃, and is suitable for high-humidity and oily environments.
Multi-functional compatibility: Supports single-pole/multi-pole circuit control and can be combined with encoder or potentiometer functions.
Easy installation: Panel installation (opening size Φ12mm/Φ16mm), screw fixation or snap-on design.
4. Application Scenarios
Industrial equipment: machine tool control, motor direction adjustment, automation instruments.
Household appliances: Oven gear switching, fan speed regulation, lamp brightness control.
Automotive electronics: Adjusting the volume of the car audio system and switching functions on the dashboard.
Medical devices: Equipment power management, parameter adjustment.
5. Optional configuration
Knob style: Circular/flat/Metal/rubber-coated (multiple colors available).
Circuit types: Single-pole single-throw (SPST), single-pole double-throw (SPDT), multi-channel parallel.
Additional features: LED indicator light, key lock, waterproof sealing ring.
6. Packaging and After-sales Service
Packaging list: Rotary switch ×1, installation nut ×1, instruction manual ×1.
Warranty period: 2 years (Free replacement for non-human-caused damage).
7. Precautions
Please confirm that the voltage/current matches the rated value of the switch before installation.
Avoid using in flammable and explosive environments.
Clean the contacts regularly to extend their service life.
