Product Overview

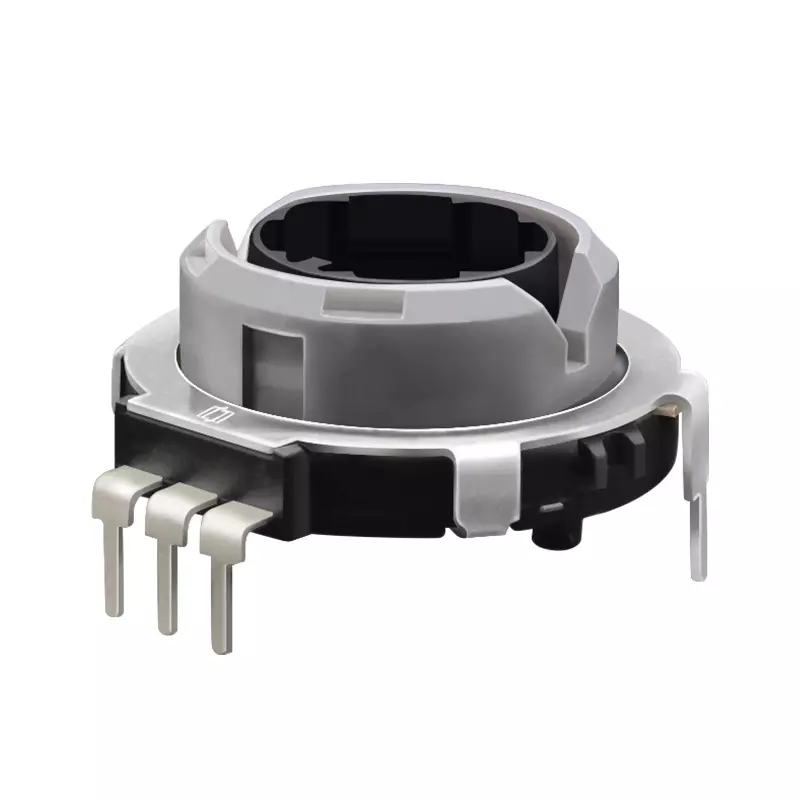

The encoder is a high-performance, multi-interface rotary photoelectric encoder, specially designed for precision motion control scenarios such as industrial automation, robots, CNC machine tools, and servo motors. Adopting advanced photoelectric sensing technology, it provides absolute/incremental signal output, featuring anti-interference, corrosion resistance and long service life, and is suitable for harsh industrial environments.
Core characteristics
High-precision measurement
Resolution: Up to 23 bits per revolution (absolute type)/up to 10,000 pulses per revolution (incremental type).
Accuracy: ±5 arcseconds, repeat positioning accuracy ±1 arcsecond.
Multiple signal outputs
Supports industrial protocols such as SSI, BiSS-C, CANopen, EtherCAT, RS485, etc., and is compatible with mainstream PLCS and drivers.
Incremental output: A/B/Z phase (differential or single-ended), TTL/HTL level optional.
Sturdy and durable design
Protection grade: IP67 (dust and water resistant), radial bearing load ≤50N, axial load ≤30N.
Operating temperature: -40°C to +85°C, suitable for high-vibration and high-humidity environments.
Flexible configuration
Shaft type: Solid shaft/hollow shaft (hole diameter 6mm to 25mm available).
Installation method: Flange installation (standard flanges B10/B14, etc.) or clamping installation.
Intelligent function
Built-in fault diagnosis (overvoltage/short circuit alarm), programmable zero position setting.
Optional redundant dual code disk design is available to enhance system security.
Technical parameters
Details of project parameters
Supply voltage: DC 5V/12-24V (±10%)
Consumption current ≤100mA (no load)
The maximum mechanical rotational speed is 12,000 RPM
Electrical interface aviation plug /M12 connector (5/8 pins)
The shell material is available in anodized aluminum alloy or stainless steel
Weight: 200g - 500g (depending on the model)
Application scenarios
Industrial automation: Joint positioning of robotic arms, speed monitoring of conveyor belts.
New energy: Wind power pitch system, photovoltaic tracking bracket Angle feedback.
Rail transit: bogie Angle inspection.
Medical equipment: CT machine rotating platform control.
Certification and quality assurance
Passed CE, RoHS and UL certifications.
We offer an 18-month warranty and lifetime technical support.
Optional accessories
Couplings, mounting brackets, signal conversion modules.
